LUBRICATION:
After the running belt has been used for a period of time, it must be lubricated with a special con-
figuration of methyl silicone oil.
1.Suggestion:
Use less than 3 hours a week, lubricate once every 5 months.
Use 4-7 hours a week, lubricate once every 2 months.
If the use time is more than 7 hours a week, it should be lubricated once a month.
Do not over-lubricate, the more lubricants the better. Reasonable lubrication is an important
factor to improve the service life of the treadmill.
2.Lubrication method:
The way to check whether you need to add lubricant is to grab the running belt and touch your
hand to the center of the back of the running belt as much as possible. If there is silicone oil stick
ing inside the running belt (a little damp feeling), you do not need to add lubricant; If the running
board is dry and you don't feel the silicone inside the belt, you need to add lubricant.

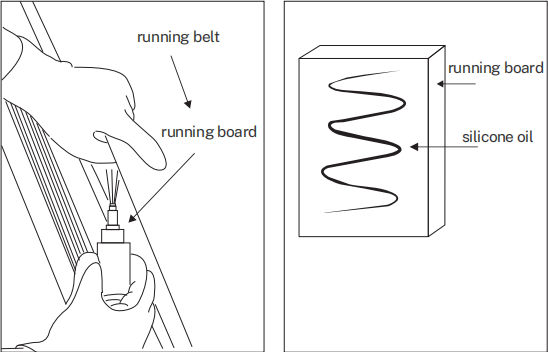

Steps to apply lubricant to the running board: (as shown in the picture).
Stop the running belt and fold the machine.
Lift up the running belt on the back of the main frame: extend the oil pot as far as possible into
the running position of the running belt, spray the silicone oil on the inner side of the treadmill,
coat both sides of the running belt with silicone oil, and then use a speed of 0.5in/h to run the
treadmill to spread the silicone oil evenly, and lightly step on the running belt from left to right
for about a few minutes to make the silicone oil completely absorbed by the running belt.
3.Running belt tightness adjustment:
All treadmills need to adjust the running belt before leaving the factory and after installation, but
there may be looseness after a period of use, such as: the user pauses and slips when running.
When this phenomenon occurs, adjust the running belt adjustment bolt clockwise and synchro
nously in units of half a turn. When the running belt is too loose, when the foot steps on the
running belt, the running belt and rollers will slip. But too tight is not good, it is easy to increase
the load on the motor and damage the motor, running belt and rollers.

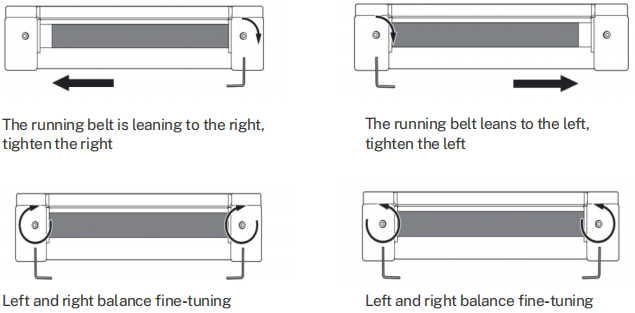

4.Running belt deviation adjustment:
All treadmills need to adjust the running belt before leaving the factory and after installation, but
after a period of use, it may still appear deviation phenomenon, which may be caused by the
following reasons:
The treadmill is uneven.
The user's feet are not in the center of the running belt when exercising.
The deviation phenomenon is artificially caused by the uneven force of the user's feet, and it
can be restored to normal after a few minutes of no-load rotation. For the deviation phenome
non that cannot be recovered automatically, the 6mm hexagonal wrench provided with the
machine is used to adjust it step by step in units of a quarter of a circle. The deviation of the
running belt is not covered by the warranty. It is mainly maintained by the user according to
the instructions. The deviation will seriously damage the running belt. It must be found and
corrected in time.
Running belt slipping:
When people are running, the running belt slips or pauses instantly.
Adjustment of the running belt:
Tighten the left and right sides of the running belt screw clockwise for 3 turns, and then adjust
according to the deviation direction of the running belt.
